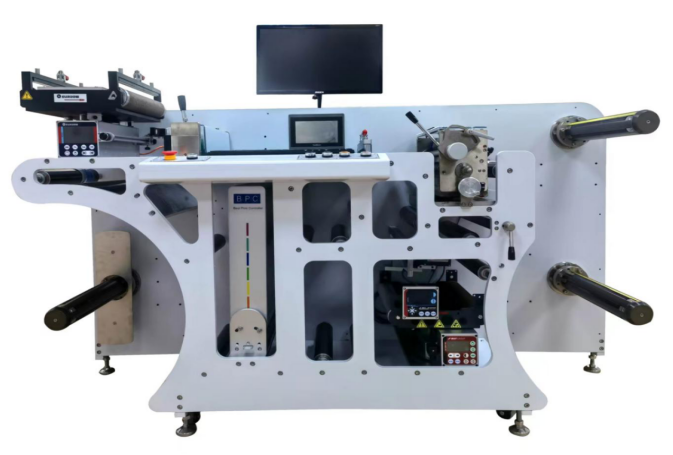

Maximum paper feed size: 340mm
Maximum detection size: 320 * 320mm
Minimum detection size: 50*30mm
Maximum unwinding diameter: 700mm
Maximum rewinding diameter: 600mm
Machine size 1900 (L) * 1160 (W) * 1680 (H)
Detection speed: 120 m / min (depending on the label size, detection content, detection accuracy,
detection of defects down to 1mm square)
Individual slitting speed: 160 m / min
Defect detection: paste word, missing printing, dirty point, overprint deviation, color difference, stamping, incomplete.
Barcode detection: 1D code, EN8, EN13, EN39, EN128 (line distance ≥ 1.5mm)
Two-dimensional code (size> 10 * 10mm, size varies according to label content), does not include variable code.
The barcode detection speed： 80pcs / second (depends on printing conditions).
Minimum color difference detection: Color after camera imaging △ E> 3
Test software system:
Taiwan special visual detection software
Skyeye (Version number V5.0)
General defect software detection module
Color difference detection module
Size detection module
Barcode detection module
Electrical Department:
Station controller dedicated PLC
Taiwan screen pass 7-inch human-machine interface
Host 64-bit IPC
Display unit is 27 inches
1 set of keyboard and mouse
Wireless WIFI 1 set
Detection software in Taiwan
Traction motor, servomotor 1
Feed motor, 2 servo motors
Test the computer special chassis 1
Testing Department:
One DALSA acquisition card
I-TEK 4K wire scan camera 1
Color optical imaging lens 1
High-speed optical camera processing
A set of high-precision encoders
A set of special light source system
A set of signal detection system
A set of special 3D light source system
Slitting section:
Advanced round knives
The high precision slide rail moves left and right
Including six groups of round knives
